使用 Flask 2.0 开发 Web API

2022-01-09 19:23:43   Cyberbolt

文章发布时刻李辉老师的 APIFlask 还在测试阶段,这里记录我使用原生 Flask 开发 Web API 的方案,并记录本项目的目录结构。APIFlask 完成后,我的工作环境将迁移至此。

未来是 微服务 和 云原生 的时代,传统后端渲染正逐渐被 Web API 替代,传统的中心服务器网站也逐步转为以 Go / Python 为主的云原生应用,容器技术发展势不可挡。本文主要研究使用 Flask 来开发 JSON API,如需了解 Docker 部署 Flask 程序的方案,请点击此处

运行环境:Python 3.8.6, Flask 2.0.2



下面简要记录 Flask 2.0 配置静态页面 和 JSON API 的方法

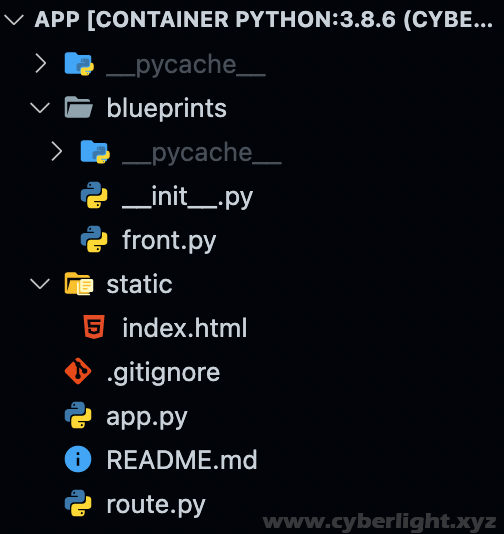

示例项目的目录结构

app.py 该项目的入口模块(使用 python app.py 即可运行程序)

route.py 保存该项目所有页面 (HTML) 的映射路径

static 静态文件的起始目录

static/index.html 测试页面

blueprints 蓝图模块

blueprints/__init__.py 蓝图模块的构造文件

blueprints/front.py 保存网站前台的所有 API



源码展示

app.py

from route import app


if __name__ == '__main__':
    app.run(host='127.0.0.1', port='5000', debug=True)



route.py

'''
    该模块存放本站所有页面路径
'''
from flask import Flask

from blueprints import front


def creat_app():
    app = Flask(
        __name__,
        static_folder='static',  # 静态文件的目录
        static_url_path='',  # 静态文件目录在链接的起始位置
    )
    app.register_blueprint(front) #导入home蓝本
    return app


app = creat_app()


@app.route('/')
def home():
    return app.send_static_file('index.html')

static_folder 和 static_url_path 参数将静态文件根目录 /static 替换为 / 。如,默认设置中 index.html 的地址为 127.0.0.1:5000/static/index.html ,此设置地址改为了 127.0.0.1:5000/index.html 或 127.0.0.1:5000 (访问其一均可到达该页面)



static/index.html

<!doctype html>
<html lang="zh-CN">
  <head>
    <!-- 必须的 meta 标签 -->
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">

    <!-- Bootstrap 的 CSS 文件 -->
    <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/bootstrap@4.6.1/dist/css/bootstrap.min.css" integrity="sha384-zCbKRCUGaJDkqS1kPbPd7TveP5iyJE0EjAuZQTgFLD2ylzuqKfdKlfG/eSrtxUkn" crossorigin="anonymous">

    <title>Hello, world!</title>
  </head>
  <body>
    <h1>Hello, world!</h1>

    <!-- JavaScript 文件是可选的。从以下两种建议中选择一个即可! -->

    <!-- 选项 1:jQuery 和 Bootstrap 集成包(集成了 Popper) -->
    <script src="https://cdn.jsdelivr.net/npm/jquery@3.5.1/dist/jquery.slim.min.js" integrity="sha384-DfXdz2htPH0lsSSs5nCTpuj/zy4C+OGpamoFVy38MVBnE+IbbVYUew+OrCXaRkfj" crossorigin="anonymous"></script>
    <script src="https://cdn.jsdelivr.net/npm/bootstrap@4.6.1/dist/js/bootstrap.bundle.min.js" integrity="sha384-fQybjgWLrvvRgtW6bFlB7jaZrFsaBXjsOMm/tB9LTS58ONXgqbR9W8oWht/amnpF" crossorigin="anonymous"></script>

    <!-- 选项 2:Popper 和 Bootstrap 的 JS 插件各自独立 -->
    <!--
    <script src="https://cdn.jsdelivr.net/npm/jquery@3.5.1/dist/jquery.slim.min.js" integrity="sha384-DfXdz2htPH0lsSSs5nCTpuj/zy4C+OGpamoFVy38MVBnE+IbbVYUew+OrCXaRkfj" crossorigin="anonymous"></script>
    <script src="https://cdn.jsdelivr.net/npm/popper.js@1.16.1/dist/umd/popper.min.js" integrity="sha384-9/reFTGAW83EW2RDu2S0VKaIzap3H66lZH81PoYlFhbGU+6BZp6G7niu735Sk7lN" crossorigin="anonymous"></script>
    <script src="https://cdn.jsdelivr.net/npm/bootstrap@4.6.1/dist/js/bootstrap.min.js" integrity="sha384-VHvPCCyXqtD5DqJeNxl2dtTyhF78xXNXdkwX1CZeRusQfRKp+tA7hAShOK/B/fQ2" crossorigin="anonymous"></script>
    -->
  </body>
</html>

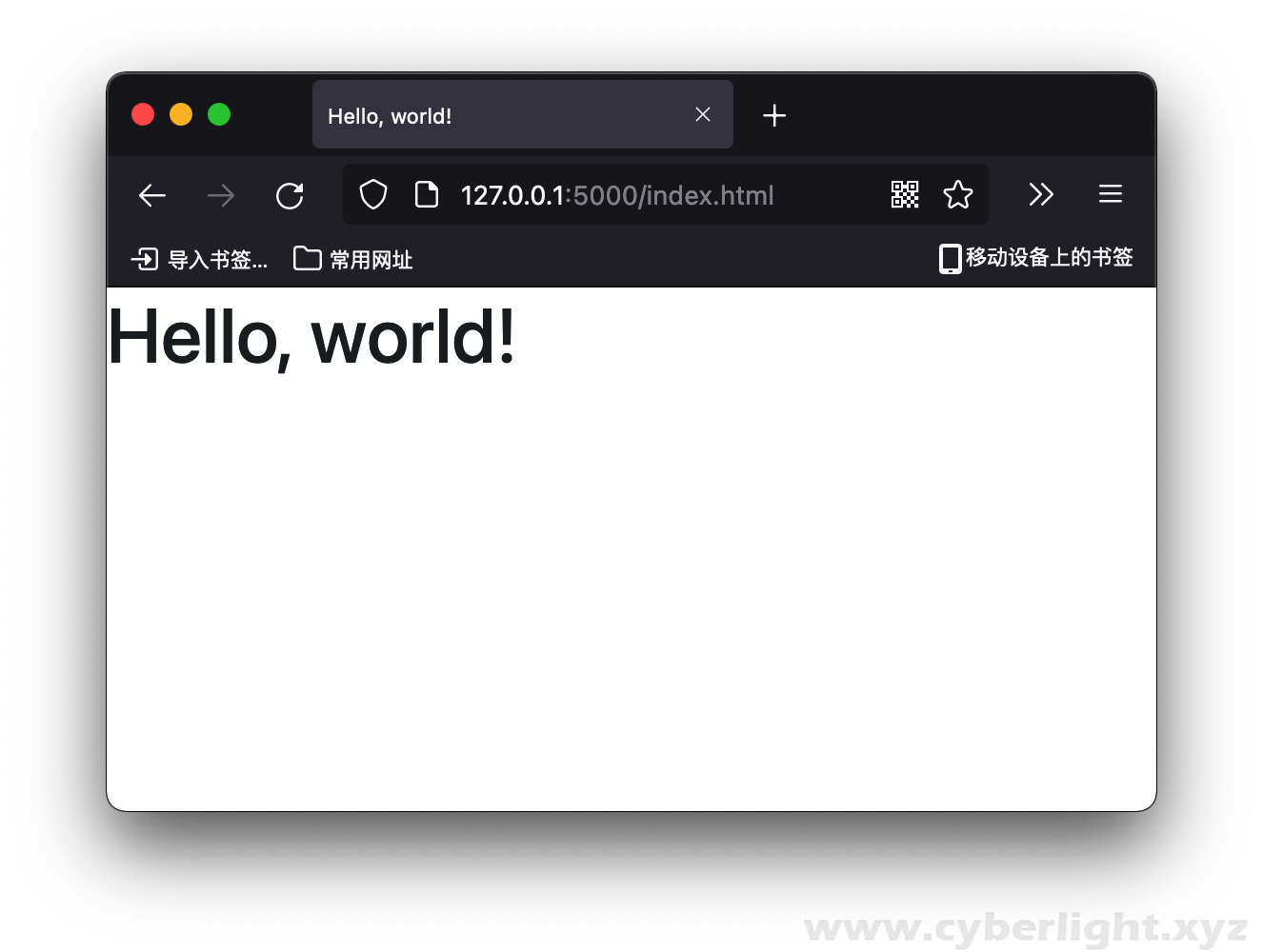

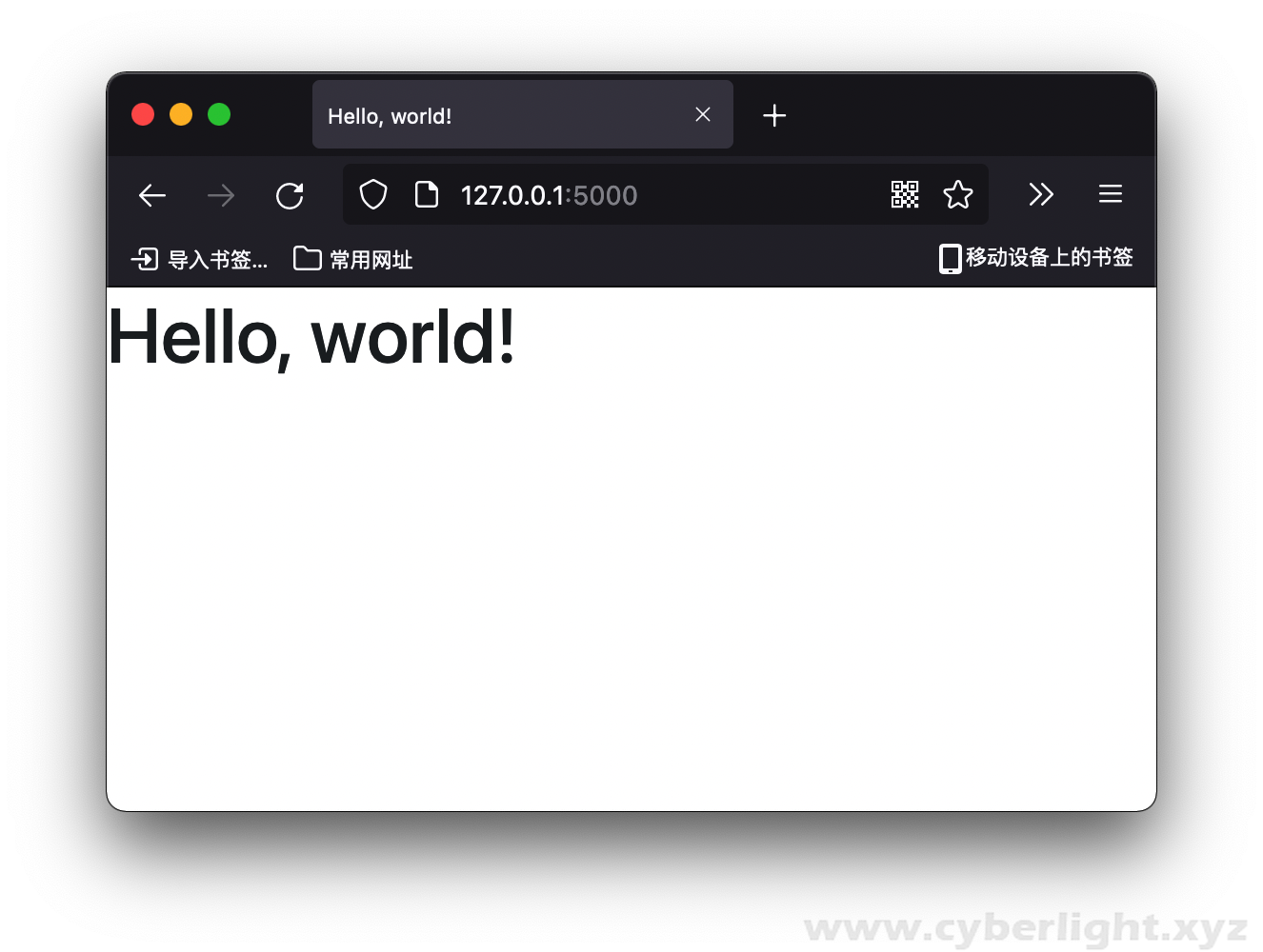

访问效果



blueprints/__init__.py

from blueprints.front import front



blueprints/front.py

'''
    保存网站前台 API
'''
from flask import Flask, Blueprint, jsonify

#蓝图配置
front = Blueprint(
    'front',
    __name__
)


@front.get('/api/test')
def test():
    return jsonify({
        'code': 1,
        'content': 'api test'
    })

Flask 蓝图配置,该模块存放 front 前台的所有 API,此处加入 Flask 2.0 语法,GET 方法 和 POST 方法配置更为便捷。/api/test 的数据交互格式为 JSON,这里用到 jsonify 将字典转为 JSON。

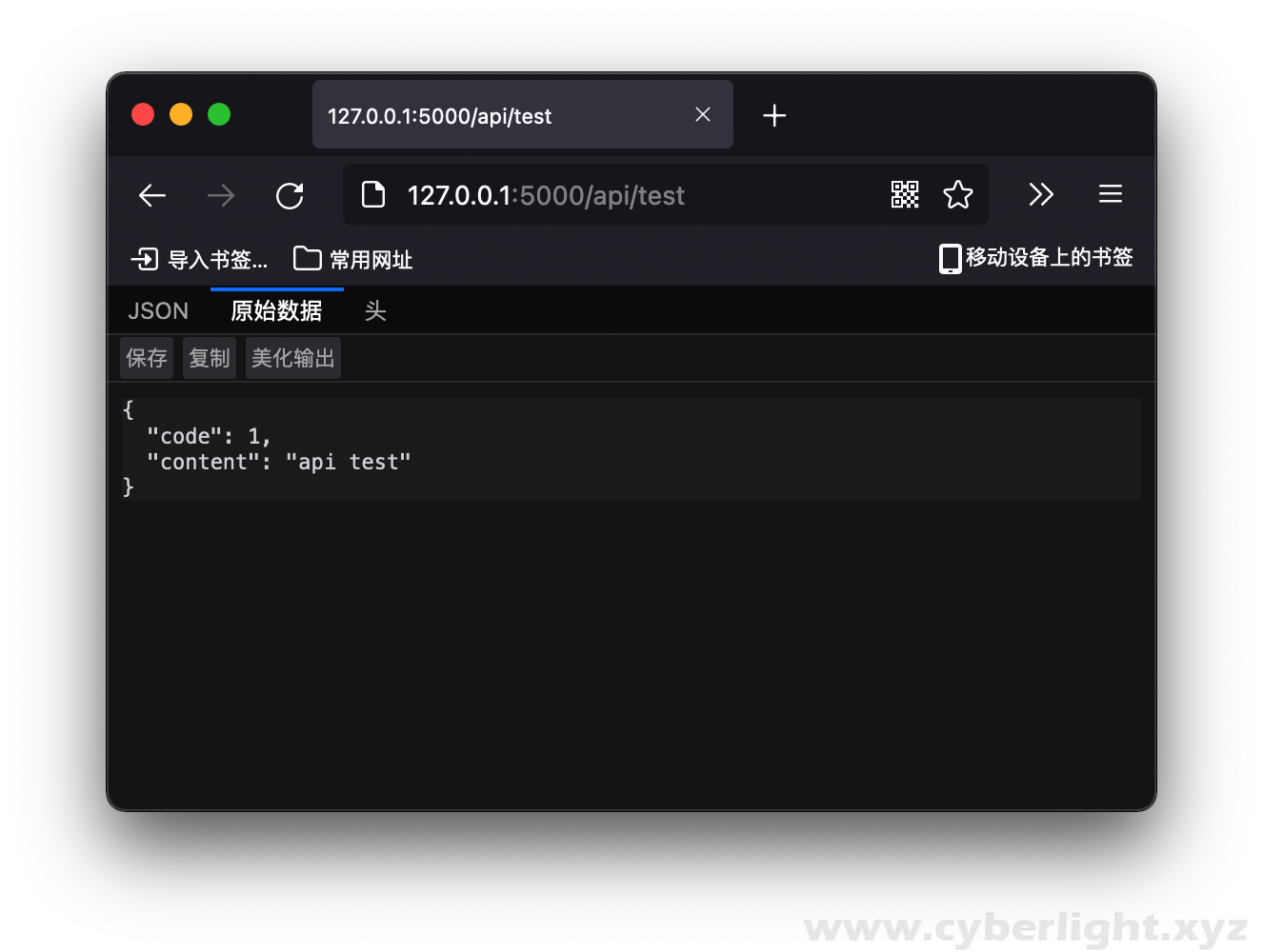

访问效果



配置完成!感谢您的阅读
